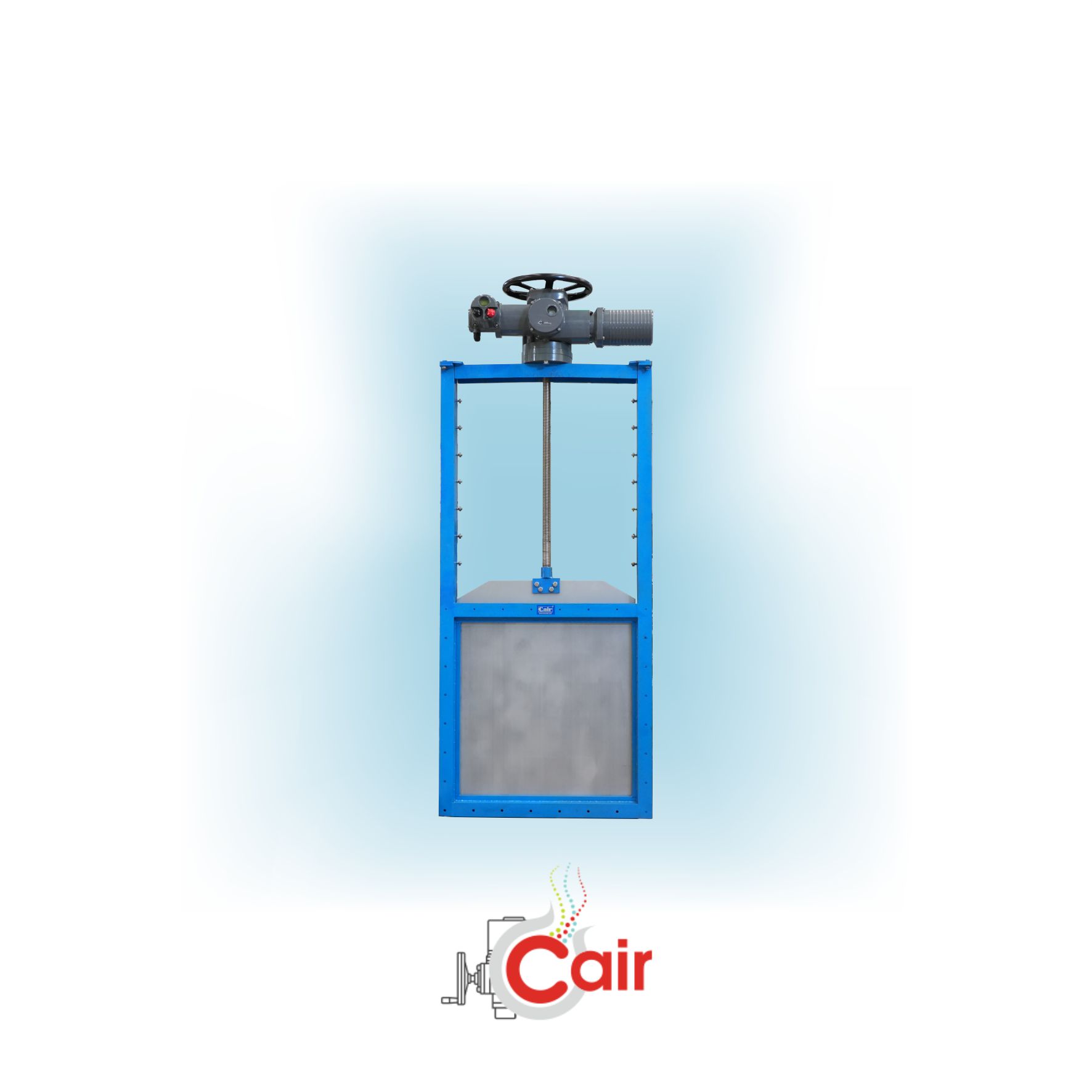

Slide Gate Valve with Multi-Turn Electric Actuator
Slide Gate Valve with Multi-Turn Electric Actuator – Reliable Flow Control for Industrial Applications
Efficient flow control is essential in industries where large volumes of water, slurry, powders, or bulk materials must be handled safely and accurately. One of the most dependable solutions for such demanding applications is the Slide Gate Valve equipped with a multi-turn electric actuator. This valve design combines strong mechanical construction with automated operation, providing precise control, reduced manual effort, and long-term operational reliability.Designed for heavy-duty industrial use, slide gate valves are commonly installed in water treatment plants, irrigation systems, dams, industrial plants, mining operations, and power generation facilities. Their simple sliding mechanism, durable materials, and motorized control make them a preferred choice where dependable shut-off and flow regulation are required.
What Is a Slide Gate Valve?
A Slide Gate Valve is a flow control device that uses a flat gate or plate that slides vertically or horizontally to open or close the flow path. When the gate moves upward, the flow passage becomes open, allowing material or fluid to pass. When the gate moves downward, the passage is blocked, stopping the flow completely.Unlike conventional valves that use rotating discs or plugs, the sliding gate design provides tight sealing, smooth operation, and excellent control over bulk materials and fluids. Because of this design advantage, slide gate valves are widely used in applications involving water, wastewater, powders, ash, grains, coal, and industrial solids.
Role of Multi-Turn Electric Actuators
The addition of a multi-turn electric actuator significantly improves valve performance by enabling automatic operation. Instead of manual handwheel operation, the actuator rotates multiple turns to move the gate up or down through a threaded stem mechanism.This automated operation offers several advantages:
- Smooth and precise opening and closing control
- Remote operation capability
- Reduced manpower requirements
- Improved safety in hazardous or large installations
- Better process automation and system integration
Motorized slide gate valves are especially useful in large facilities where frequent operation or remote control is necessary.
Construction and Materials
Industrial slide gate valves are built using IS Grade steel, Mild Steel (MS), and Stainless Steel (SS) to ensure strength, corrosion resistance, and durability. The valve trim, sealing arrangement, and actuator components are selected according to project requirements, operating pressure, and temperature conditions.Typical construction features include:
- Heavy-duty fabricated or cast body
- Smooth sliding gate plate
- Replaceable sealing arrangement
- Strong stem and guide mechanism
- Electric actuator mounting arrangement
- Single channel or double channel end connection
The design ensures reliable performance even under challenging working environments involving high pressure, temperature variations, or abrasive materials.
Operating Conditions
Slide gate valves with electric actuators are designed to work under a wide range of operating conditions:
- Size: As per requirement, including large custom dimensions such as 1000 mm × 1000 mm
- Pressure: Designed according to project specifications
- Temperature Range: −20°C to 180°C (depending on material of construction)
- End Connections: Single channel or double channel
- Materials of Construction: IS Grade, MS, SS
These flexible design options allow industries to customize the valve for specific operational needs.
Types of Slide Gate Valves
Industries use different types of slide gate valves depending on the application and control requirement.
Manual Slide Gate Valve
Operated using a handwheel or lever mechanism. Suitable for smaller systems or locations where automation is not required.
Electric Motorized Slide Gate Valve
Operated using a multi-turn electric actuator. Ideal for automated systems, remote operation, and large industrial installations.
Pneumatic Slide Gate Valve
Uses compressed air cylinders for opening and closing. Often used in powder and bulk material handling systems.
Hydraulic Slide Gate Valve
Operated using hydraulic pressure for heavy-duty industrial operations requiring high operating force.
Knife Edge Gate Valve
Designed with a sharp-edged gate suitable for slurry, viscous fluids, and material handling systems.
Applications of Slide Gate Valves
Because of their robust construction and reliable sealing, slide gate valves are widely used in many industrial sectors.
Water and Wastewater Treatment
Used for flow isolation and control in treatment plants, reservoirs, and drainage systems.
Irrigation and Canal Systems
Installed in irrigation networks and canals for controlled water distribution and regulation.
Cement and Mining Industries
Used for controlling clinker, limestone, coal, ores, and bulk materials in material handling systems.
Power Plants
Installed in ash handling systems, coal feeding lines, and cooling water control systems.
Chemical and Processing Industries
Used for handling powders, granules, and process materials requiring reliable shut-off control.
Food and Agricultural Industries
Used for handling grains, flour, sugar, and bulk food materials where controlled flow is necessary.
Advantages of Motorized Slide Gate Valves
Slide gate valves equipped with electric actuators provide several operational benefits:
1. Accurate Flow Control
Motorized actuation allows precise positioning of the gate for controlled flow regulation.
2. Reduced Manual Effort
Remote operation eliminates the need for manual handling, especially in large installations.
3. High Durability
Strong material construction ensures long service life even under demanding industrial conditions.
4. Reliable Shut-Off Performance
Tight sealing arrangement prevents leakage and ensures dependable system operation.
5. Easy Automation
Electric actuators allow easy integration with SCADA, PLC, and automated plant control systems.
6. Low Maintenance
Simple mechanical design reduces maintenance requirements and downtime.
Installation and Operation
Proper installation ensures efficient valve performance. The valve should be mounted securely with proper alignment to the pipeline or channel structure. Electrical connections for the actuator must follow recommended industrial safety standards.During operation:
- The actuator receives an electrical signal.
- The motor rotates the stem in multiple turns.
- The sliding gate moves upward or downward.
- The flow passage opens or closes smoothly.
This controlled operation ensures consistent and reliable flow management.
Quality Testing and Reliability
Industrial slide gate valves are typically subjected to 100% hydrostatic testing to ensure leak-proof performance and structural strength. Testing procedures verify:
- Pressure resistance
- Sealing performance
- Structural integrity
- Operational reliability
These quality checks ensure that the valve performs safely and efficiently under actual working conditions.
Why Industries Prefer Electric Actuated Slide Gate Valves
Modern industrial systems increasingly demand automation, safety, and operational efficiency. Motorized slide gate valves meet these requirements by providing:
- Automated flow regulation
- Remote monitoring and control
- Reduced operational downtime
- Consistent performance under heavy workloads
- Long-term cost efficiency
Because of these advantages, many industries are shifting from manual systems to electric actuator-operated valve solutions.
Conclusion
A Slide Gate Valve with a multi-turn electric actuator is a dependable and efficient solution for large-scale flow control in industrial, irrigation, water treatment, and material handling applications. Its strong construction, automated operation, and customizable design make it suitable for handling water, wastewater, powders, ash, and bulk materials under demanding conditions.With features such as durable materials, precise motorized operation, flexible sizing, reliable sealing, and easy integration with automation systems, these valves provide long-lasting performance and operational safety. Selecting a high-quality slide gate valve designed according to project requirements ensures smooth operation, reduced maintenance, and improved overall system efficiency.Slide Gate Valve with a multi-turn electric actuator
